技術服務描述

QC Report

Report QC介紹基本信息，說明：

• 報告發布時間

• 報告類型atac

• 比對基因組使用的是什么，如mm10,hg38,rn6

• 比對軟件bowtie2

• 測序類型為雙端測序（paired end）

• peak caller 軟件為 macs2

Alignment quality metrics (比對質量檢測)

SAMstat (raw unfiltered BAM) (原始比對質量檢測)

原始數據比對基因組過程的質控：

• Total Reads，為全部reads數。

• duplicate Reads，為重復reads數，需要去除。

• Mapped Reads，為mapping到基因組上的reads數。

• % Mapped Reads，為reads的mapping率。
  （大于90%非常好，大于80%較好，較低時可考慮是否是實驗的特殊處理或其他污染導致。）

• Properly Paired Reads，正確匹配的雙端reads。

• % Properly Paired Reads，reads 雙端匹配率。

• With itself，雙端匹配到基因組上的reads。

• singleton，只有單端匹配到基因組上的reads。

• % singleton，只有單端的匹配率。

• Diff.Chroms，沒有匹配到基因組上的數據。

Marking duplicates (filtered BAM) (重復數據標記檢測)

Filtered out (samtools view -F 1804):

• read unmapped (0x4)

• mate unmapped (0x8, for paired-end)

• not primary alignment (0x100)

• read fails platform/vendor quality checks (0x200)

• read is PCR or optical duplicate (0x400)

說明：
Duplicate Reads是由于PCR過度擴增，導致的完全一致的reads，這些reads在分析時需要去除。利用samtools過濾掉的數據包括：

• unmapped的reads（單端/雙端）

• 沒有唯一匹配的reads

• 本身質量差的reads

• PCR重復產生的duplicate reads

SAMstat (filtered/deduped BAM) (過濾掉線粒體reads及重復reads后的質量檢測)

Filtered and duplicates removed

說明：

• duplicate reads，對過濾后的reads進行質控。表格說明同上。

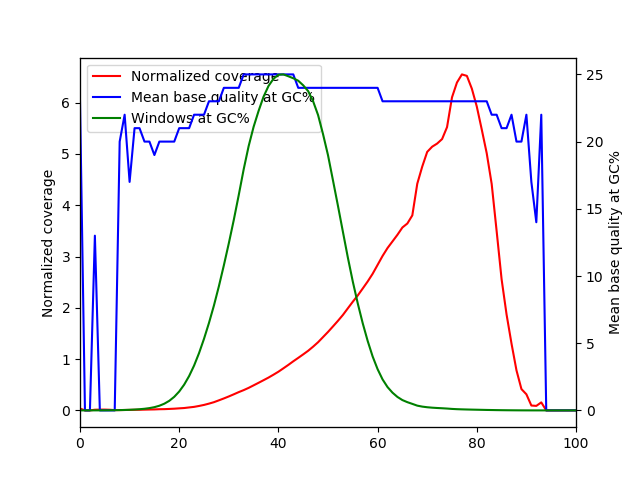

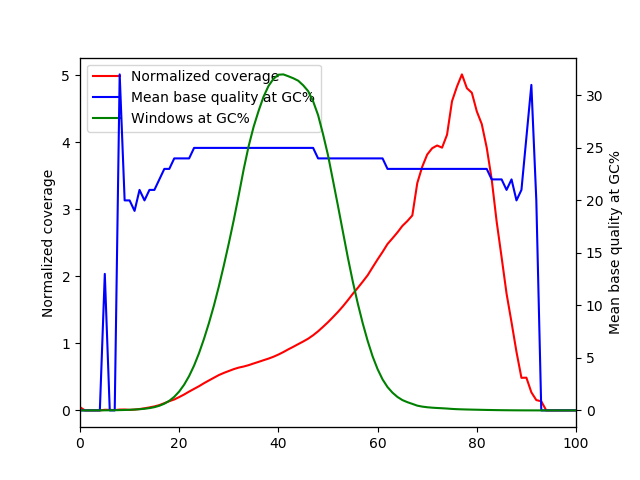

Sequence quality metrics (filtered/deduped BAM) (測序質量檢測)

Open chromatin assays are known to have significant GC bias. Please take this            into consideration as necessary.

說明：

• 紅色線條為每條序列在基因組特定位置的均一化覆蓋度，

• 藍色線條為每條序列的平均堿基的質量

• 綠色線條為每條堿基的GC含量，正常一般分布在50%左右，

每條序列的平均堿基的質量參考說明：

Phred分值	不正確的堿基識別	堿基正確識別率	Q.sorce
10	1/10	90%	Q10
20	1/100	99%	Q20
30	1/1000	99.9%	Q30
40	1/10000	99.99%	Q40

Library complexity quality metrics (文庫復雜度質量檢測)

Library complexity (filtered non-mito BAM) (文庫復雜度)

Mitochondrial reads are filtered out by default.        The non-redundant fraction (NRF) is the fraction of non-redundant mapped reads        in a dataset; it is the ratio between the number of positions in the genome        that uniquely mapped reads map to and the total number of uniquely mappable        reads. The NRF should be > 0.8. The PBC1 is the ratio of genomic locations        with EXACTLY one read pair over the genomic locations with AT LEAST one read        pair. PBC1 is the primary measure, and the PBC1 should be close to 1.        Provisionally 0-0.5 is severe bottlenecking, 0.5-0.8 is moderate bottlenecking,        0.8-0.9 is mild bottlenecking, and 0.9-1.0 is no bottlenecking. The PBC2 is        the ratio of genomic locations with EXACTLY one read pair over the genomic        locations with EXACTLY two read pairs. The PBC2 should be significantly        greater than 1. See more details at                the ENCODE portal standard for ChIP-Seq pipeline

NRF (non redundant fraction)
       PBC1 (PCR Bottleneck coefficient 1)
       PBC2 (PCR Bottleneck coefficient 2)
       PBC1 is the primary measure. Provisionally

• 0-0.5 is severe bottlenecking

• 0.5-0.8 is moderate bottlenecking

• 0.8-0.9 is mild bottlenecking

• 0.9-1.0 is no bottlenecking

說明：

• Total Fragments:總片段數

• Distinct Fragments:可以唯一匹配到基因組上的片段數

• One Reads：只有一個reads匹配到特定位置的片段數

• Two Read：有兩個reads匹配的同一位置的片段數

• NRF = Distinct/Total

• PBC1 = OneRead/Distinct

• PBC2 = OneRead/TwoRead

文庫復雜度的指標由三個值決定，NRF、PBC1、PBC2，其中最重要的為PBC1的數值

ENCODE對文庫復雜度的要求如下，

PBC1	PBC2	Bottlenecking level	NRF	Complexity	Flag colors
< 0.7	<1	Severe	< 0.7	Concerning	Orange
0.7 <= PBC1 <= 0.9	1 <= PBC2 <= 3	Moderate	0.7 <= NRF <= 0.9	Acceptable	Yellow
> 0.9	>3	None	> 0.9	ldeal	None

Replication quality metrics (重復性質量檢測)

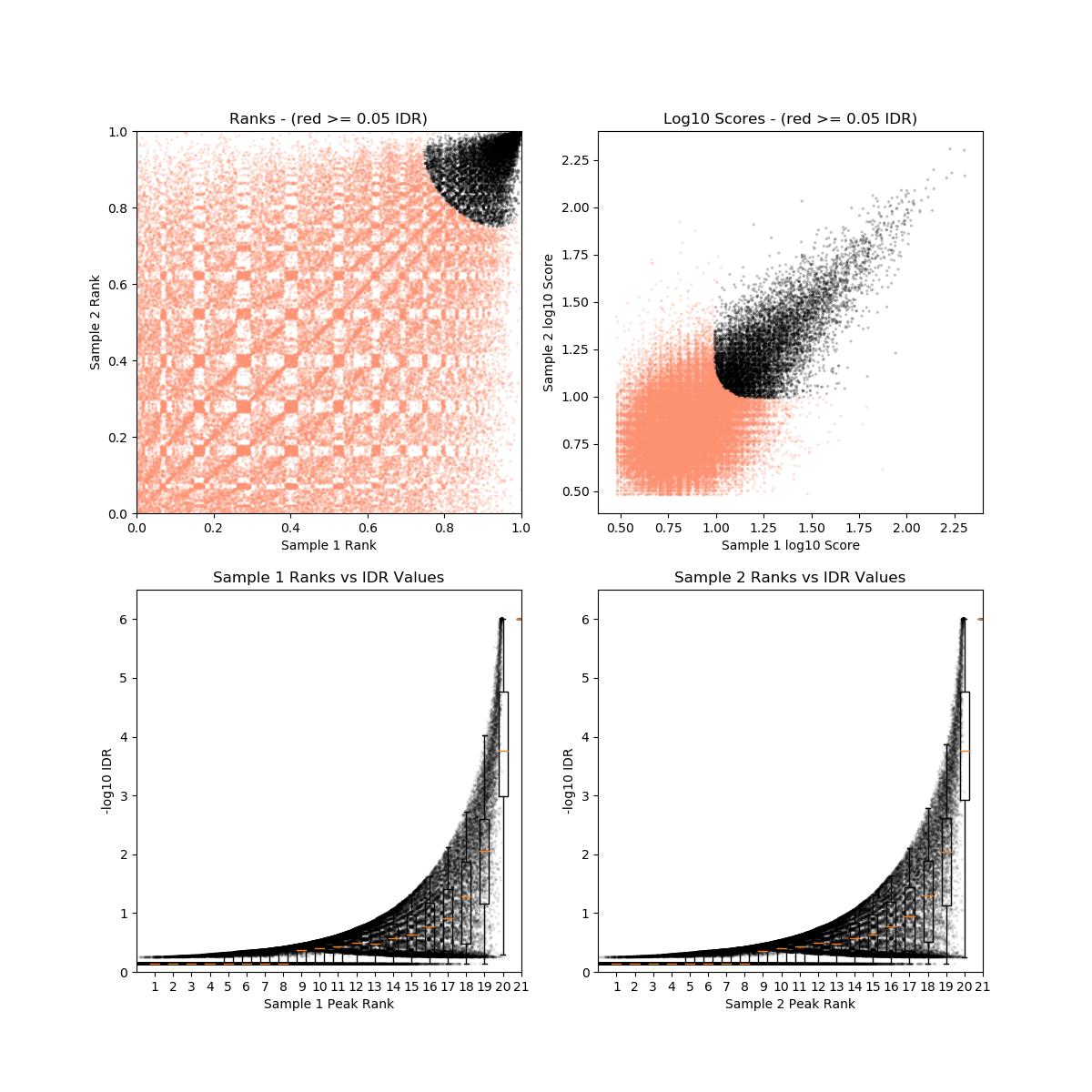

IDR (Irreproducible Discovery Rate) plots (不可重復發現率)
（可選，僅在有至少2組重復(rep1,rep2,...)時計算）

IDR主要比較兩個樣本之間的重復性，先對peaks進行排序，然后進行重復性的分析，得到IDR得分。IDR<0.05，認為有重復性，黑色表示，IDR>=0.05認為沒有重復性，紅色表示。

• 一般對兩重復樣本進行IDR檢測（rep1 vs rep2），檢測兩樣本之間的重復性。

• 單樣本的虛擬樣本間也可進行IDR檢測（rep1-pr1 vs rep1-pr2），驗證IDR檢測的準確性。

• 樣本混樣成pool進行IDR檢測（pool-pr1 VS pool-pr2）

Reproducibility QC and peak detection statistics（重復性QC及peak統計分析）

Reproducibility QC

• N1: Replicate 1 self-consistent peaks (comparing two pseudoreplicates generated by subsampling Rep1 reads)

• N2: Replicate 2 self-consistent peaks (comparing two pseudoreplicates generated by subsampling Rep2 reads)

• Ni: Replicate i self-consistent peaks (comparing two pseudoreplicates generated by subsampling RepX reads)

• Nt: True Replicate consistent peaks (comparing true replicates Rep1 vs Rep2)

• Np: Pooled-pseudoreplicate consistent peaks (comparing two pseudoreplicates generated by subsampling pooled reads from Rep1 and Rep2)

• Self-consistency Ratio: max(N1,N2) / min (N1,N2)

• Rescue Ratio: max(Np,Nt) / min (Np,Nt)

• Reproducibility Test: If Self-consistency Ratio >2 AND Rescue Ratio > 2, then 'Fail' else 'Pass'

說明：

• N1: replicate1自我虛擬peak的一致性peak

• N2: replicate2自我虛擬peak的一致性peak

• Ni: replicatei自我虛擬peak的一致性peak

• Nt: 真實一致性的peak

• Np: 整體的數據自我虛擬peak的一致性peak

• N optimal: 虛擬peak的一致性peak

• N conservation: 真實peak的一致性peak

• Self-consistency Ratio:   max(N1,N2) / min (N1,N2)

• Rescue Ratio:    max(Np,Nt) / min (Np,Nt)

• Reproducibility Test: 如果Self-consistency Ratio >2 AND Rescue Ratio > 2, 則失?。‵ailed）,否則通過（pass）

ENCODE對以上指標的檢測標準如下：

Self-consistency Ratio	Rescue Ratio	Resulting Data Status	Flag colors
Less than 2	Less than 2	Ideal	None
Less than 2	Greater than 2	Acceptable	Yellow
Greater than 2	Less than 2	Acceptable	Yellow
Greater than 2	Greater than 2	Concerning	Orange

• IDR 一致的peak 最好大于70,000 ，不少于50,000 為可接受

Number of raw peaks （原始peaks數）

           Top 500000 raw peaks from macs2 with p-val threshold 0.01

說明：

• 原始peak數最好不少于150,000，不少于100,000為可接受

Peak calling statistics （peak calling統計）

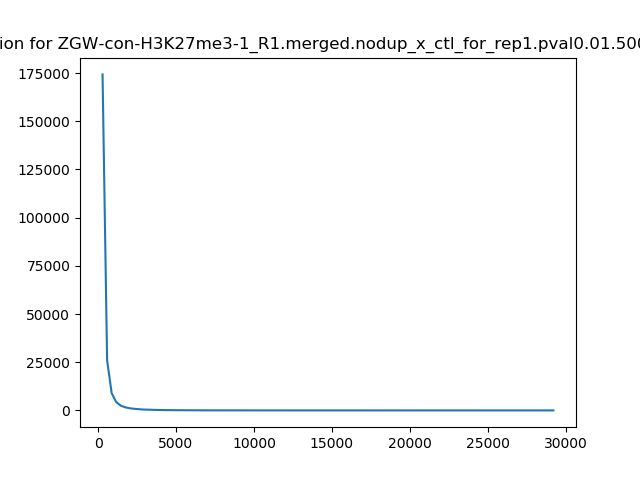

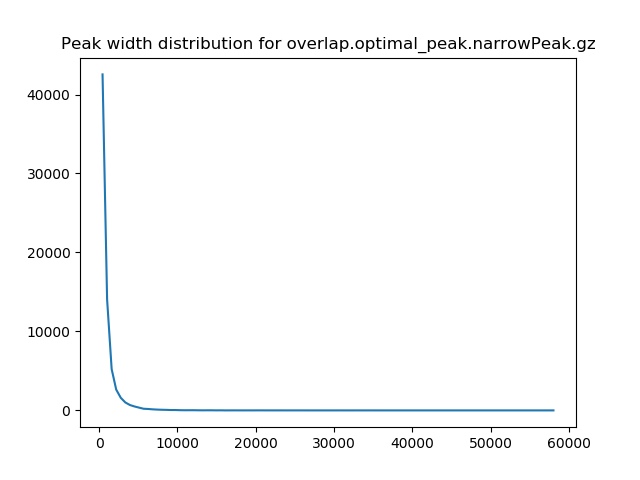

Peak region size （peak長度范圍）

說明：

• 圖形橫坐標為region size，縱坐標為peak數。

• Rep1與rep2顯示的是原始peaks（去除duplicate及線粒體基因組）

• Idr_opt顯示的是經過IDR優化后的peaks

• Overlap_opt顯示經過overlap優化后的peaks

Enrichment / Signal-to-noise ratio

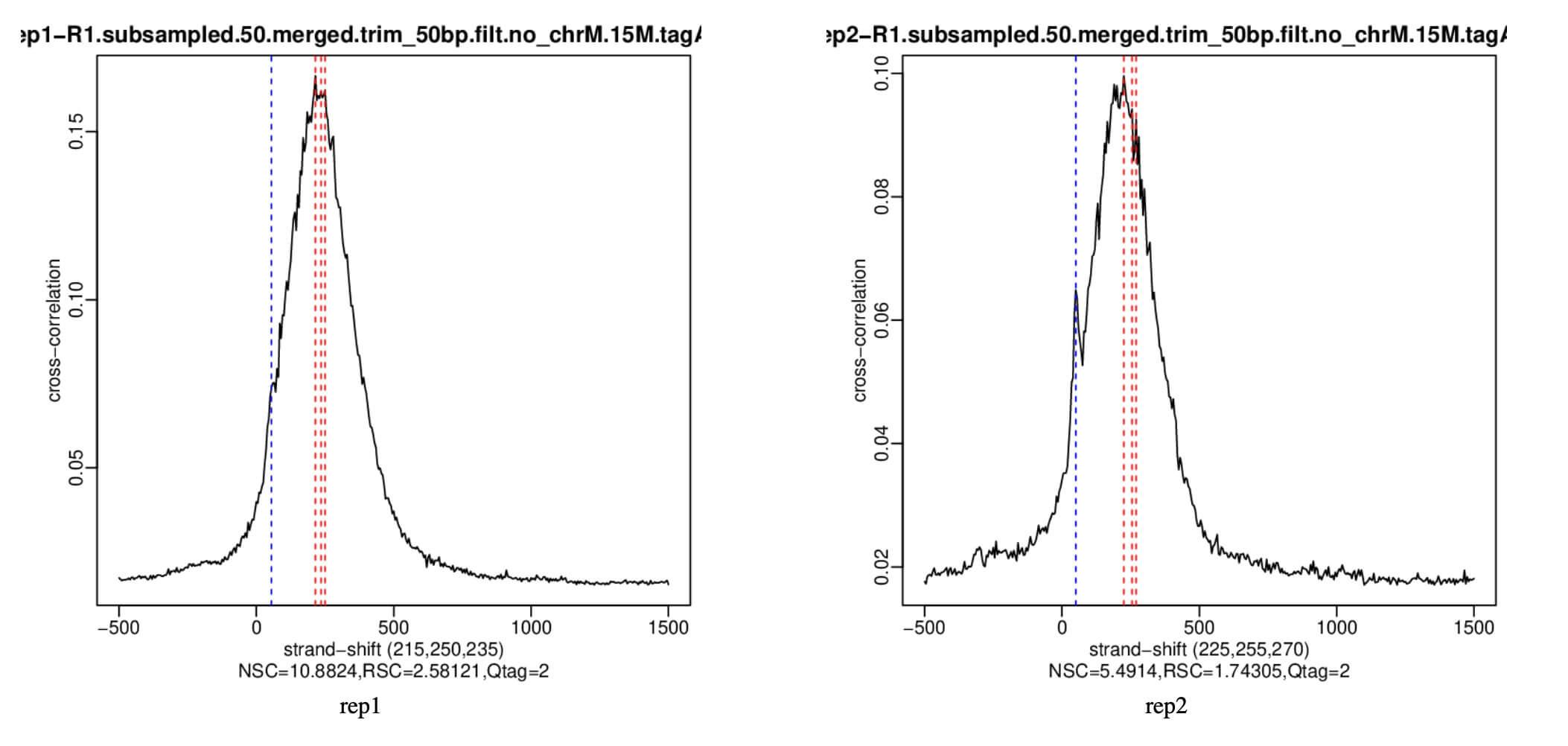

Strand cross-correlation measures (trimmed/filtered SE BAM) (鏈互相關檢測)

Performed on subsampled (15000000) reads mapped from FASTQs that are trimmed to 50.            Such FASTQ trimming and subsampling reads are for cross-corrleation analysis only.            Untrimmed FASTQs are used for all the other analyses.

NOTE1: For SE datasets, reads from replicates are randomly subsampled to 15000000.
           NOTE2: For PE datasets, the first end (R1) of each read-pair is selected and trimmed to 50 the reads are then randomly subsampled to 15000000.

• Normalized strand cross-correlation coefficient (NSC) = col9 in outFile

• Relative strand cross-correlation coefficient (RSC) = col10 in outFile

• Estimated fragment length = col3 in outFile, take the top value

NSC與RSC的算法如下：

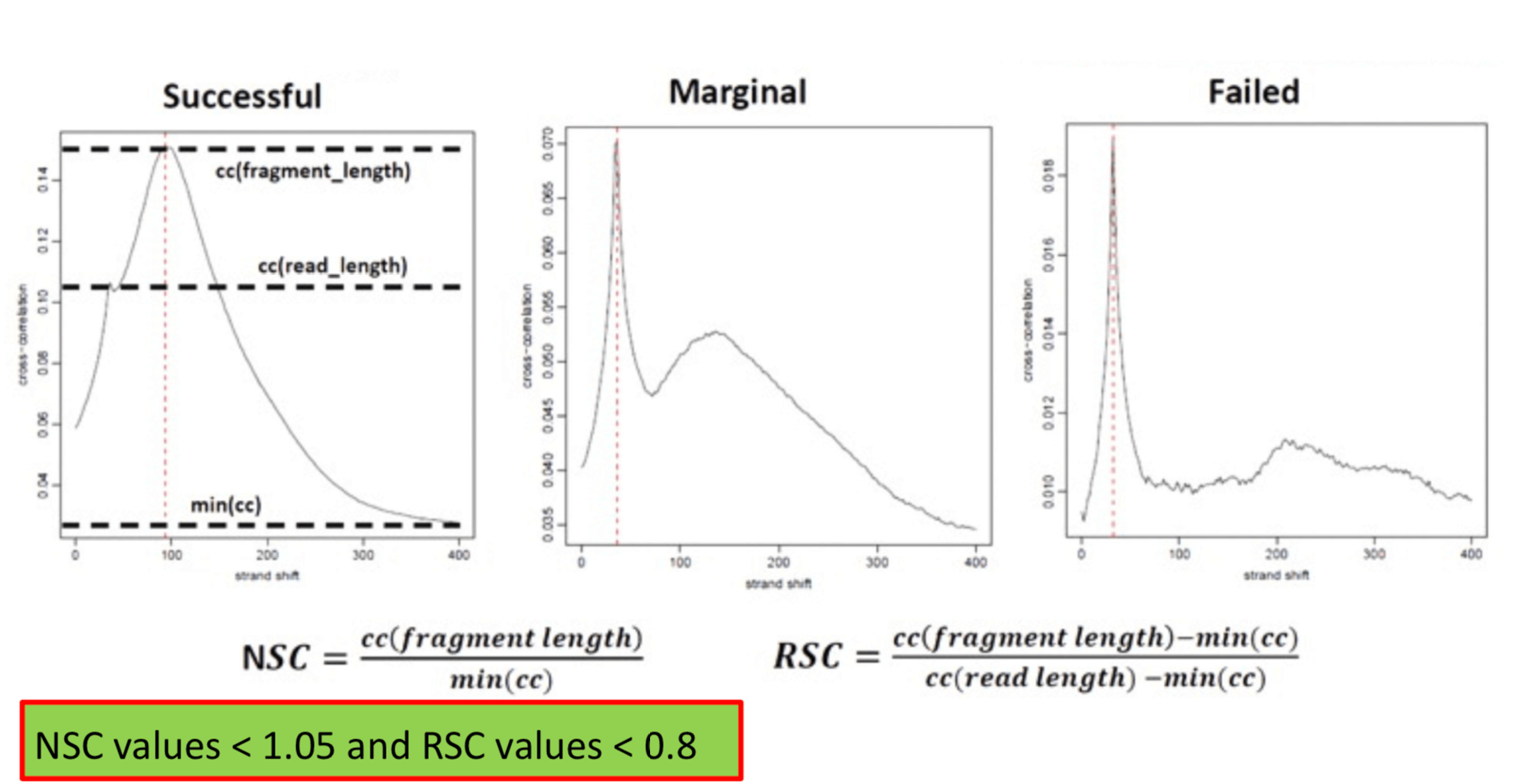

從flitered BAM文件中虛擬一個含有25,000,000個reads的副本，并對該副本進行鏈互相關分析。鏈互相關性分析主要顯示+，-鏈reads的相似性。由于正負reads的peak中心有偏移，因此，結果中一般會(huì )出現兩個peak，一個是標準peak，一個是虛擬peak（ Phantom Peak）。如下圖所示

Jensen-Shannon distance (filtered/deduped BAM)(JS散度檢測)

說明：

• JS散度是檢測兩樣本之間的離散程度，也就是檢測兩樣本之間的相似性。

Peak enrichment

Fraction of reads in peaks (FRiP) (peaks占總reads數的比值)

FRiP for macs2 raw peaks

FRiP for overlap peaks

FRiP for IDR peaks

For macs2 raw peaks:

• repX: Peak from true replicate X

• repX-prY: Peak from Yth pseudoreplicates from replicate X

• pooled: Peak from pooled true replicates (pool of rep1, rep2, ...)

• pooled-pr1: Peak from 1st pooled pseudo replicate (pool of rep1-pr1, rep2-pr1, ...)

• pooled-pr2: Peak from 2nd pooled pseudo replicate (pool of rep1-pr2, rep2-pr2, ...)

           For overlap/IDR peaks:

• repX_vs_repY: Comparing two peaks from true replicates X and Y

• repX-pr1_vs_repX-pr2: Comparing two peaks from both pseudoreplicates from replicate X

• pooled-pr1_vs_pooled-pr2: Comparing two peaks from 1st and 2nd pooled pseudo replicates

說明：

• FRiP指的是fraction of all mapped reads that fall into peak regions. 代表peak區域內reads的比例，peak區域內的reads是抗體富集的序列，其他區域的序列是背景噪聲。 只有mapping到基因組上的reads才會(huì )進行后續分析，所以直接用peak區域reads數目除以所有mapping基因組的數目，就得到了FRiP Score。

• Encode團隊發現FRip Score和peak的個數存在正相關關系。 對于不同的轉錄因子chip數據，peak的個數不同，總體的趨勢來看，peak的個數越多，FRiP Score的值越大。在Encode的chip數據集中，有80%左右的FRiP Score值都超過了1%，所以將1%看做是一個衡量chip實驗的軟標準。 之所以稱之為軟標準，是因為FRiP score低于1%并不能直接說明chip實驗是失敗的，高于1%也不能直接說明chip實驗就是成功的。在ZNF274和RNA III型聚合酶的chip實驗中，peak的個數很少，FRiP score的值也小于1%；在CTCF等轉錄因子實驗中，FRiP score的值又遠大于1%。

• 所以說FRiP score值是和特定的轉錄因子或者組蛋白修飾相關，在研究特定轉錄因子時，參考別人已經發表的數據中的FRiP Score作為衡量標準是更好的，在沒有參考的情況下，可以用1%的閾值來作為一個軟標準，為chip實驗的質量提供一個參考。當peak個數的大于1000時，1%這個標準的效果還是比較好的，有相當大的參考意義。
